While manufactured your Product , all require a clean & Proper

Plateform of floor which indeed is a challenge to minimize the impact Cost of Manufacturing / Maintence. To achieve the target & Quality of your Product we at Rki has introduced TTB Series of Castors which are Long Lasting & Maintence free.Our Product are specially Designed to Carry Heavy Loads with no impact on Floor/Useance.

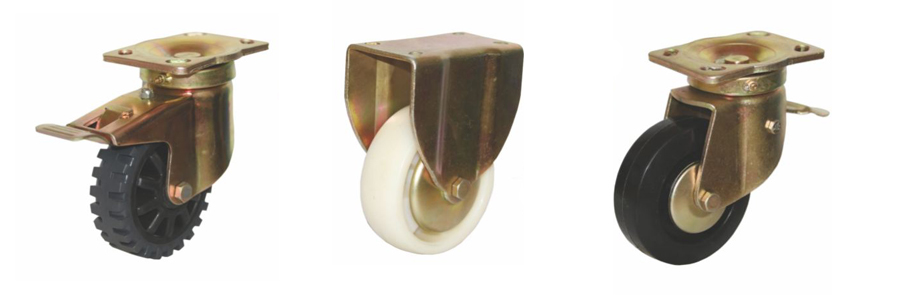

We used 6 mm Bracket & 8 mm Plate thickness & also Center Bolt is Forged in EN-8 Steel with Strong/Proper welding to reduce Re-work after using. Swivel head made by us with Taper Roller thrust Ball Bearing for easy Lubrication/use. We Manufacture wide Range of Wheels to roll smoothly. Swivel & Swivel with Brake available in Powder Coating & Zinc Plating.

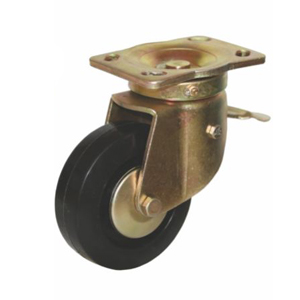

T.T.B SERIES - SWIVEL

WHEEL DIA WIDTH(MM) TOTAL HEIGHT PLATE SIZE HOLE DISTANCE  LOAD CAPACITY SHEET THICKNESS
100 50 175 MM 150 X 113 MM 115 X 75  MM 300 - 600 KGS 6 + 8 MM
150 50 207 MM 150 X 113 MM 115 X 75 MM 300 - 600 KGS 6 + 8 MM
200 50 260 MM 150 X 113 MM 115 X 75 MM 300 - 750 KGS 6 + 8 MM
250 50 313 MM 150 X 113 MM 115 X 75  MM 300 - 750 KGS 6 + 8 MM

T.T.B SERIES - FIX

WHEEL DIA WIDTH(MM) TOTAL HEIGHT PLATE SIZE HOLE DISTANCE  LOAD CAPACITY SHEET THICKNESS
100 50 175 MM 150 X 90 MM 115 X 60 MM 300 - 600 KGS 5 MM
150 50 207 MM 150 X 90 MM 115 X 60 MM 300 - 600 KGS 5 MM
200 50 260 MM 150 X 90 MM 115 X 60 MM 300 - 750 KGS 5 MM
100 50 131 MM 150 X 90 MM 115 X 60  MM 300 - 750 KGS 5 MM
