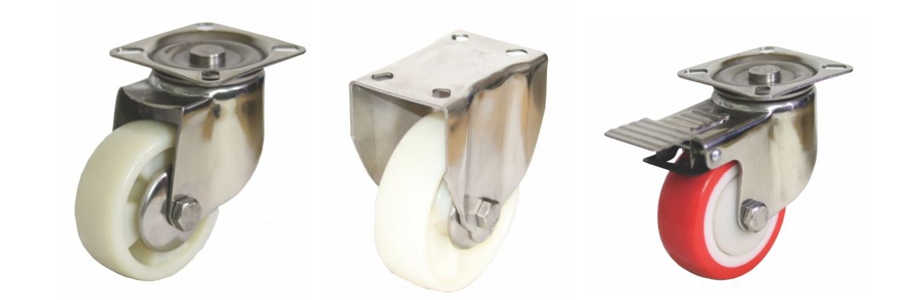

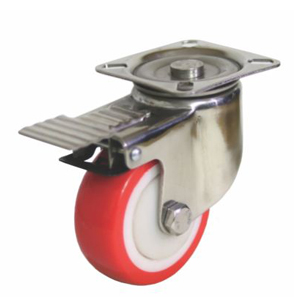

Rki introduced SS –SERIES, the Stainless steel version of SS Series are manufactured of pressed steel Castors with Non Corrosive Components to maintain Durability & Having Quality Grade material of 316/304 & 202 steel. Available In wide range of wheels as per the table in Side.
Suitable for application in Hotels/Hospitals/Canteens/Dairy Equipments/Chemical & Pharmaceuticals Industries. Manufacturer & Exporter of Stainless Steel PU Casters Wheels in India - Rki Castors
| WHEEL DIA | WIDTH (MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 50 MM | 22 | 75 MM | 63 X 50 MM | 45 X 30 MM | 30 KGS | 1.5 MM |
| 75 MM | 22 | 97 MM | 63 X 50 MM | 45 X 30 MM | 35 KGS | 1.5 MM |
| 75 MM | 32 | 110 MM | 96 X 78 MM | 75 X 55 MM | 60 KGS | 2.5 MM |
| 100 MM | 32 | 137 MM | 96 X 78 MM | 75 X 55 MM | 70 KGS | 2.5 MM |
| 125 MM | 32 | 157 MM | 96 X 78 MM | 75 X 55 MM | 75 KGS | 2.5 MM |
| 100 MM | 38 | 140 MM | 96 X 94 MM | 70 X 70 MM | 90 KGS | 2.5 MM |
| 125 MM | 38 | 163 MM | 120 X 96 MM | 85 X 60 MM | 90 KGS | 2.5 MM |
| 150 MM | 38 | 192 MM | 120 X 96 MM | 85 X 60 MM | 90 KGS | 2.5 MM |
| 200 MM | 38 | 245 MM | 120 X 96 MM | 85 X 60 MM | 90 KGS | 2.5 MM |
| WHEEL DIA | WIDTH (MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 75 MM | 32 | 110 MM | 95 X 67 MM | 75 X 45 MM | 60 KGS | 2.5 MM |
| 100 MM | 32 | 137 MM | 95 X 67 MM | 75 X 45 MM | 70 KGS | 2.5 MM |
| 125 MM | 32 | 157 MM | 95 X 67 MM | 75 X 45 MM | 75 KGS | 2.5 MM |
| 100 MM | 38 | 140 MM | 115 X 78 MM | 85 X 45 MM | 90 KGS | 2.5 MM |
| 125 MM | 38 | 163 MM | 115 X 78 MM | 85 X 45 MM | 90 KGS | 2.5 MM |
| 150 MM | 38 | 192 MM | 115 X 78 MM | 85 X 45 MM | 90 KGS | 2.5 MM |
| 200 MM | 38 | 245 MM | 115 X 78 MM | 85 X 45 MM | 90 KGS | 2.5 MM |
