L TTB Series

L TTB Series
Ask For Price

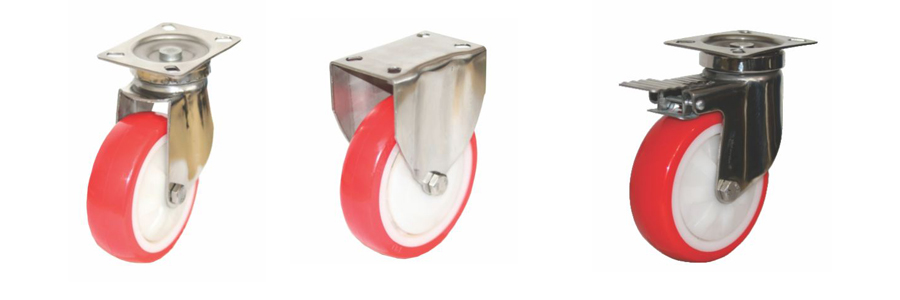

We at Rki manufacturer the L-TTB Series in Stainless steel with various Grade 316/304 which are the Highly Suitable for Applications in Pharmaceuticals/Hospital/Hotels & Food Processing Industries etc.

These wheels are very reliable for movement of medium Capacity Load & useful for various applications in medium Load Contents thrust & taper Roller Bearing which can be lubricated through grease nipple for smooth, reliable & Noise less movement & are also required rare maintenance of our wheels.

Rki also manufactured such type of wheel with MS for Stability of the Products applications.

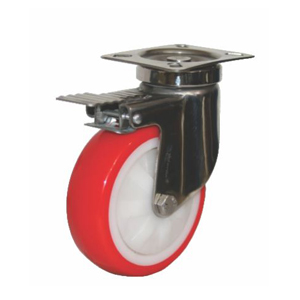

L TTB Series - SWIVEL

WHEEL DIA WIDTH (MM) TOTAL HEIGHT PLATE SIZE HOLE DISTANCE LOAD CAPACITY SHEET THICKNESS
75 MM 38 MM 123 MM 120x95 MM 90x65 MM 100-125 KGS 2.8 MM
100 MM 50 MM 153 MM 120x95 MM 90x65 MM 100-200 KGS 2.8 MM
125 MM 50 MM 173 MM 120x95 MM 90x65 MM 100-125 KGS 2.8 MM
150 MM 50 MM 204 MM 120x95 MM 90x65 MM 100-200 KGS 2.8 MM
200 MM 50 MM 258 MM 120x95 MM 90x65 MM 100-200 KGS 2.8 MM

L TTB Series - FIX

WHEEL DIA WIDTH (MM) TOTAL HEIGHT PLATE SIZE HOLE DISTANCE LOAD CAPACITY SHEET THICKNESS
75 MM 38 MM 123 MM 115 X 80 MM 85 X 45 MM 100 - 125 KGS 2.5 MM
100 MM 50 MM 153 MM 115 X 80 MM 85 X 45 MM 100 - 200 KGS 2.5 MM
125 MM 50 MM 173 MM 115 X 80 MM 85 X 45 MM 100 - 125 KGS 2.5 MM
150 MM 50 MM 204 MM 115 X 80 MM 85 X 45 MM 100 - 200 KGS 2.5 MM
200 MM 50 MM 258 MM 115 X 80 MM 85 X 45 MM 100 - 200 KGS 2.5 MM
