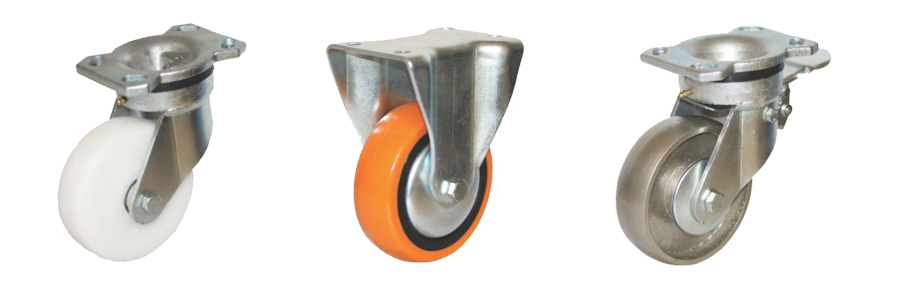

As Forged Steel Castors, ball over the untempered racing of the Castor head are to be in proper functions, for this, we manufacture the series to avoid racing wear-off. Our Castors have bearings which can be replaced at the user end resulting major saving of replacement.
| WHEEL DIA | WIDTH (MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 100 | 50 | 157 MM | 150 X 110 MM | 120 X 65 MM | 250 - 350 KGS | 6 + 8 MM |
| 100 | 50 | 203 MM | 150 X 110 MM | 120 X 65 MM | 250 - 350 KGS | 6 + 8 MM |
| 200 | 50 | 248 MM | 150 X 110 MM | 120 x 65 MM | 250 - 350 KGS | 6 + 8 MM |
| WHEEL DIA | WIDTH (MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 100 | 50 | 157 MM | 150 X 110 MM | 120 X 65 MM | 250 - 350 KGS | 4 MM |
| 100 | 50 | 203 MM | 150 X 110 MM | 120 X 65 MM | 250 - 350 KGS | 4 MM |
| 200 | 50 | 248 MM | 150 X 110 MM | 120 x 65 MM | 250 - 350 KGS | 4 MM |
We are eager to join hands with you in undertaking development of products specific to your needs and provide Tailor-made solutions. Rki Castors has a team of business development managers in all major towns of the country, however, if you ever find any difficulty in finding our products, Please contact us at +91 9891562007 or +91 8800901636 and we will ensure that your requirements are attended to immediately.
