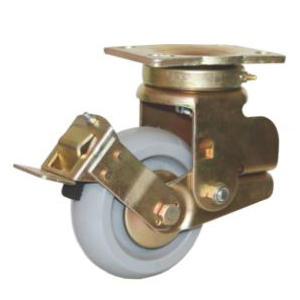

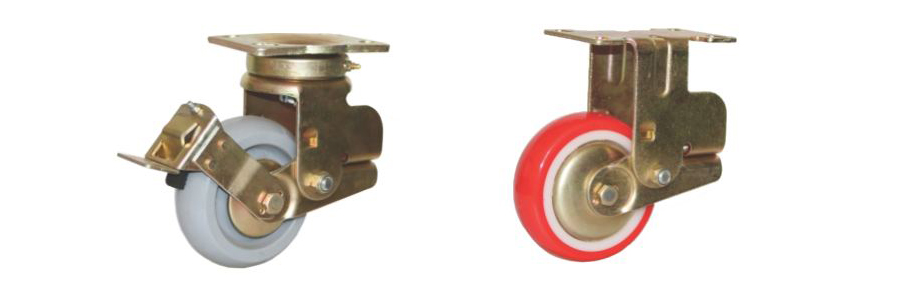

Pressed Steel Spring Loaded Castors made out of thick sheet with tapper roller bearing & thrust bearing fitted with grease nipple for lubrications to provide strength & protect from damaging shocks / vibrations caused due to heavier loads & evenly distributed over the wheels & spring assembly , heavy spring to take care for extra load.
Center bolt is forged from EN-8 steel to enhance shock bearing capacity. Kept two ball bearings to ensure noise - less movements.
| WHEEL DIA | WIDTH(MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 100 | 50 | 207 MM | 160 X 115 MM | 135 X 80 MM | 250 - 500 KGS | 6 + 8 MM |
| 150 | 50 | 219 MM | 160 X 115 MM | 135 X 80 MM | 250 - 500 KGS | 6 + 8 MM |
| 200 | 50 | 260 MM | 160 X 115 MM | 135 X 80 MM | 250 - 500 KGS | 6 + 8 MM |
| WHEEL DIA | WIDTH(MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 100 | 50 | 207 MM | 160 X 115 MM | 135 X 80 MM | 250 - 500 KGS | 6 MM |
| 150 | 50 | 219 MM | 160 X 115 MM | 135 X 80 MM | 250 - 500 KGS | 6 MM |
| 200 | 50 | 260 MM | 160 X 115 MM | 135 X 80 MM | 250 - 500 KGS | 6 MM |
We are eager to join hands with you in undertaking development of products specific to your needs and provide Tailor-made solutions. Rki Castors has a team of business development managers in all major towns of the country, however, if you ever find any difficulty in finding our products, Please contact us at +91 9891562007 or +91 8800901636 and we will ensure that your requirements are attended to immediately.
