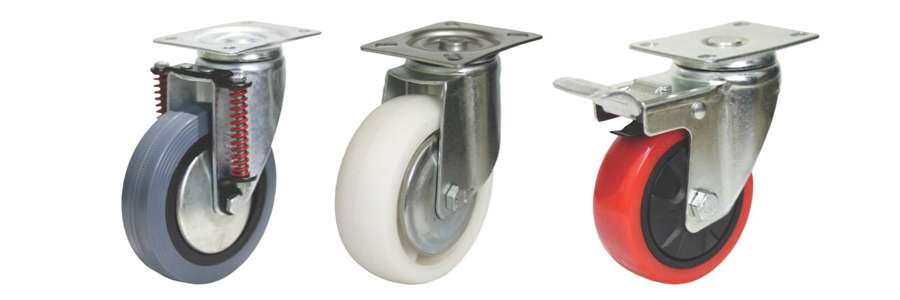

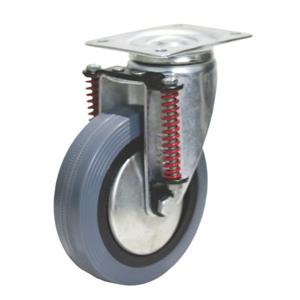

RKI introduced Light Duty Press steel Castor with Double Ball Bearing in Swivel Head Secured with thick kingpin &
Covered with Dust Preventive Side Caps.
Finish : Zink Plated.
Fitting : Plate type.
Wheel : Wheels available in PVC/Polypropylene & PU
| WHEEL DIA | WIDTH (MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 62 MM | 27 | 90 MM | 75 X 57 MM | 54 X 40 MM | 35 KGS | 2 MM |
| 75 MM | 27 | 104 MM | 75 X 57 MM | 54 X 40 MM | 35 KGS | 2 MM |
| 75 MM | 32 | 110 MM | 96 X 78 MM | 75 X 55 MM | 60 KGS | 2.5 MM |
| 100 MM | 27 | 130 MM | 75 X 57 MM | 54 X 40 MM | 40 KGS | 2 MM |
| 100 MM | 32 | 135 MM | 96 X 78 MM | 75 X 55 MM | 60 KGS | 2.5 MM |
| 125 MM | 32 | 157 MM | 96 X 78 MM | 75 X 55 MM | 60 KGS | 2.5 MM |
| 100 MM | 38 | 136 MM | 95 X 95 MM | 70 X 70 MM | 80 KGS | 2.8 MM |
| 125 MM | 38 | 160 MM | 120 X 95 MM | 90 X 65 MM | 80 KGS | 2.8 MM |
| 150 MM | 38 | 186 MM | 120 X 95 MM | 90 X 65 MM | 80 KGS | 2.8 MM |
| 100 MM | 50 | 136 MM | 95 X 95 MM | 70 X 70 MM | 90 KGS | 2.8 MM |
| 150 MM | 50 | 192 MM | 120 X 95 MM | 90 X 65 MM | 90 KGS | 2.8 MM |
| 200 MM | 50 | 250 MM | 120 X 95 MM | 90 X 65 MM | 90 KGS | 2.8 MM |
| WHEEL DIA | WIDTH (MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 75 MM | 32 | 110 MM | 95 X 67 MM | 75 X 45 MM | 60 KGS | 2.5 MM |
| 100 MM | 32 | 135 MM | 95 X 67 MM | 75 X 45 MM | 70 KGS | 2.5 MM |
| 125 MM | 32 | 157 MM | 95 X 67 MM | 75 X 45 MM | 75 KGS | 2.8 MM |
| 100 MM | 38 | 136 MM | 115 X 80 MM | 85 X 45 MM | 90 KGS | 2.8 MM |
| 125 MM | 38 | 160 MM | 115 X 80 MM | 85 X 45 MM | 90 KGS | 2.8 MM |
| 150 MM | 38 | 186 MM | 115 X 80 MM | 85 X 45 MM | 90 KGS | 2.8 MM |
| 100 MM | 50 | 136 MM | 95 X 95 MM | 85 X 45 MM | 90 KGS | 2.8 MM |
| 150 MM | 50 | 192 MM | 115 X 80 MM | 85 X 45 MM | 90 KGS | 2.8 MM |
| 200 MM | 50 | 250 MM | 115 X 80 MM | 85 X 45 MM | 90 KGS | 2.8 MM |
We are eager to join hands with you in undertaking development of products specific to your needs and provide Tailor-made solutions. Rki Castors has a team of business development managers in all major towns of the country, however, if you ever find any difficulty in finding our products, Please contact us at +91 9891562007 or +91 8800901636 and we will ensure that your requirements are attended to immediately.
