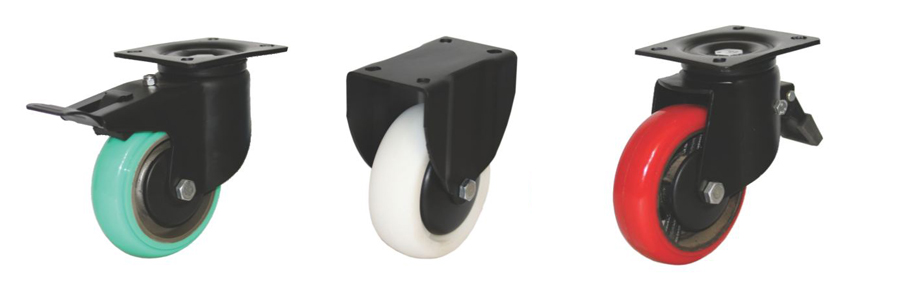

Heavy Duty Pressed Steel Castors having double ball bearing in Swivel head with thick threaded King Pin to avoid dust. Fitting available in Plate , Stem ( Round/ Square) in Chrome Plated/Powder Coated /Zinc Plating. Available in Various sizes / Type : Fix / Swivel & Swivel with Brake.

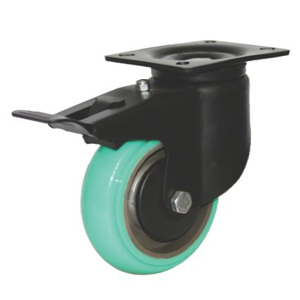

Swivel with Brake manufactured in Peddle Lock ( Back Side ) & Front Lock. Castors having Iron Bush or double sealed ball bearings.
| WHEEL DIA | WIDTH(MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 100 | 50 | 152 MM | 132 X 118MM | 105 X 80 MM | 200 - 250 KGS | 4 + 5 MM |
| 150 | 50 | 187 MM | 132 X 118 MM | 105 X 80 MM | 200 - 250 KGS | 4 + 5 MM |
| 200 | 50 | 248 MM | 132 X 118 MM | 105 X 80 MM | 200 - 250 KGS | 4 + 5 MM |
| WHEEL DIA | WIDTH(MM) | TOTAL HEIGHT | PLATE SIZE | HOLE DISTANCE | LOAD CAPACITY | SHEET THICKNESS |
|---|---|---|---|---|---|---|
| 100 | 50 | 152 MM | 150 X 90 MM | 115 X 55 MM | 200 - 250 KGS | 4 MM |
| 150 | 50 | 187 MM | 150 X 90 MM | 115 X 55 MM | 200 - 250 KGS | 4 MM |
| 200 | 50 | 248 MM | 150 X 90 MM | 115 X 55 MM | 200 - 250 KGS | 4 MM |
We are eager to join hands with you in undertaking development of products specific to your needs and provide Tailor-made solutions. Rki Castors has a team of business development managers in all major towns of the country, however, if you ever find any difficulty in finding our products, Please contact us at +91 9891562007 or +91 8800901636 and we will ensure that your requirements are attended to immediately.
